Control Pressure Switch Type CPS 20-62

products

Products of eyvaz company

General Information:

Control Pressure Switch Type CPS 20-62 is used to control the amount of pressure inside the watering and pumping systems ,tanks and pressure lines (for temperatures below 70 ° C).this device is designed for controlling the pressure from 15 Psi to 145 Psi .it is suitable from (-10….66 ° C) for ambient temperate. This equipment is installed with ¼” gear connection.

The foundation of Control Pressure Switch Type CPS 20-62 is electromechanical.This kind of pressure switch is usually mounted vertically on the top of the tank from the gear connection. please be careful for fixing this device from the brass nut use suitable wrench. Never use the body part for twisting and closing , Use the wrench to fasten as shown below. this device has a ¼” gear connection.

As this equipment is installed in tanks and under pressure systems, so be careful when installing this device pay attention that the amount of the thread is sufficiently insert to the connector ,otherwise due to the system pressure , the pressure switch may break away from its location and cause damage. By using the wrench you can fix this device as shown in figure 1. When you install this equipment be careful about the temperature of installation place if it is under 70 ˚C the pressure switch must be installed directly and in higher temperature the pressure switch must be installed with a loop to avoid damaging the pressure switch. If the installation has severe vibration, it should be fitted with a flexible (elastic) tube farther away.

I to P Positioner Type 3730-1 Samson

I TO P positioner is used for controlling the valve with Type NCV 24-11 by input flow. .

Analog Thermostatic Sensor TS Type 22-31

Analog Thermostatic Sensor TS Type 22-31 works based on physical rule of liquid expansion. Temperature sensor of this device is placed inside the tank….

Manual Thermostatic Sensor TS Type 22-41

the safe operation of unit is guaranteed if only it is installed, started up and maintained by qualified and skilled person, and most importantly, based….

Magnetic Sensor for Magnetic Level Gauge Type MS15

Magnetic Sensor type MS15 install next to the Level Gauge. When the floater goes up exist magnetic field and finally change to the micro switch..

Thermodynamic Steam Trap With Bimetallic Air Vent Type TDS 30-62

The thermodynamic trap is an extremely robust steam trap with a simple mode of operation. The trap operates by means of the dynamic effect of flash steam….

Stainlesssteel Vacuum Breaker Type SVB 40-10

In air and compressed gasses system, humidity of air and gases is usually converted to condensate and flocked in the system. This condensate causes to….

Brass Vacuum Breaker type BVB 40-16

In liquid line, vacuum sometimes is occured. This event causes to appropriate movement of liquid and decrease efficiency of system or during draining….

Control Pressure Switch Type CPS 20-61

The foundation of pressure switch is electromechanical. .

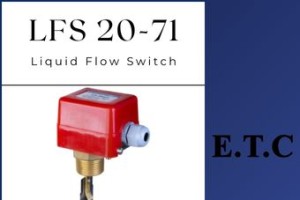

Liquid Flow Switch LFS 20-71
